PhysioLabXR: A Software Platform for Real-Time Multi-Modal Brain-Computer Interfaces and Extended Reality Experiments

Duration: May 2020 – Present
Role: Co-Founder, Lead Software Engineer, Co-First Author
Advisor: Dr. Steven K. Feiner & Dr. Paul Sajda

Example Use Cases

EEG + fMRI + Eye-Tracking + Audio

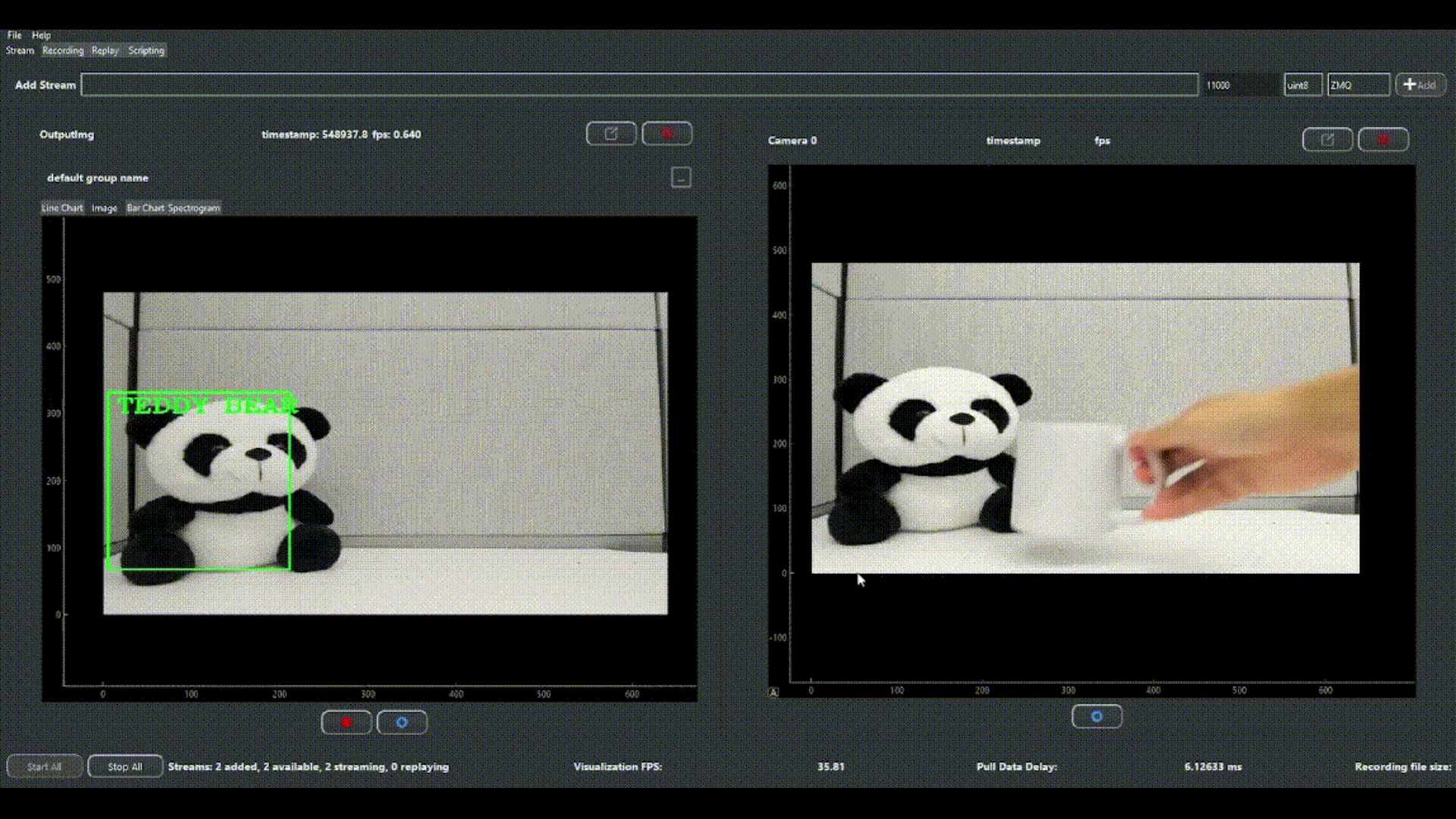

Camera + Object Detecction

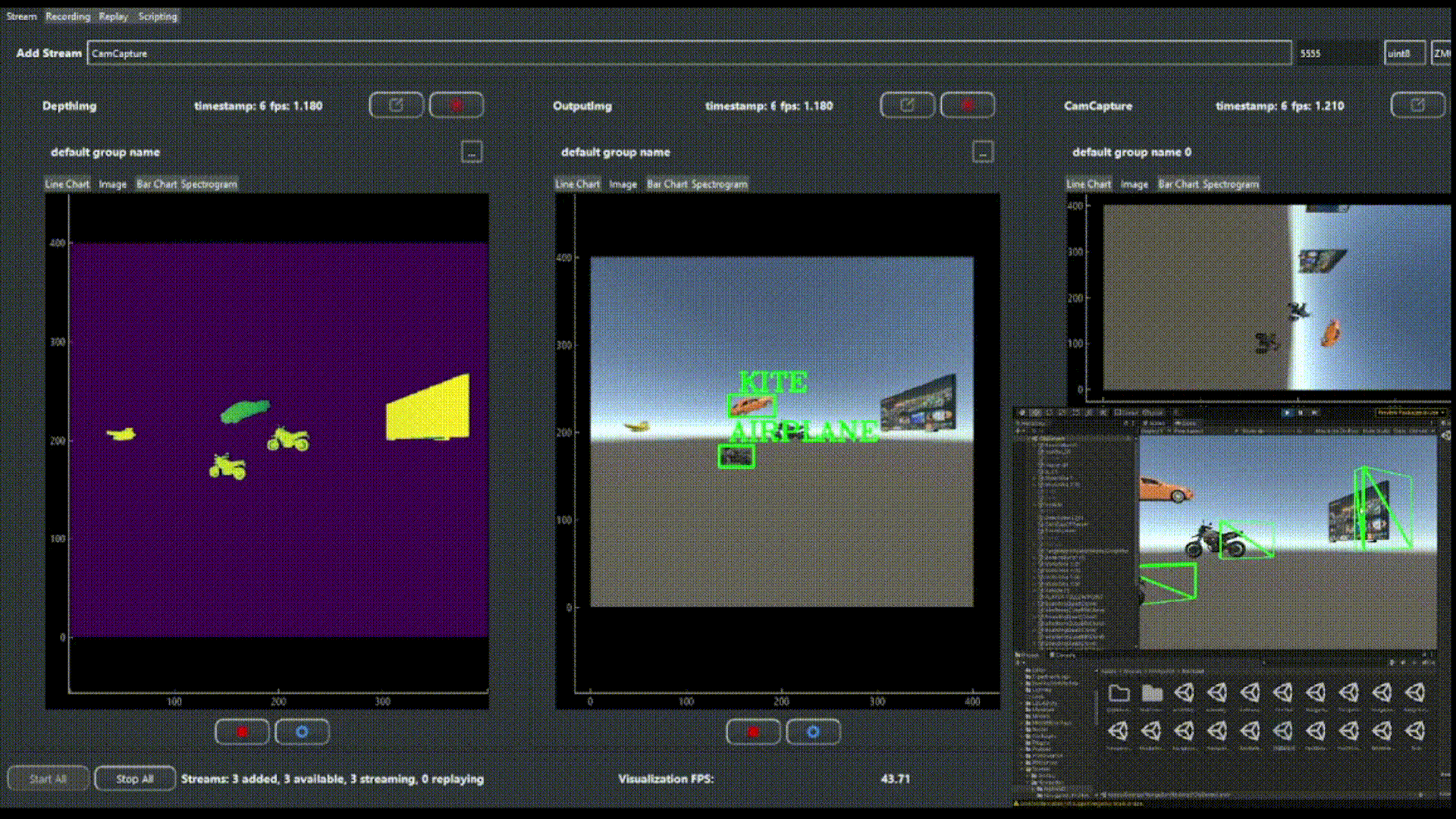

VR in Unity + Object Detection

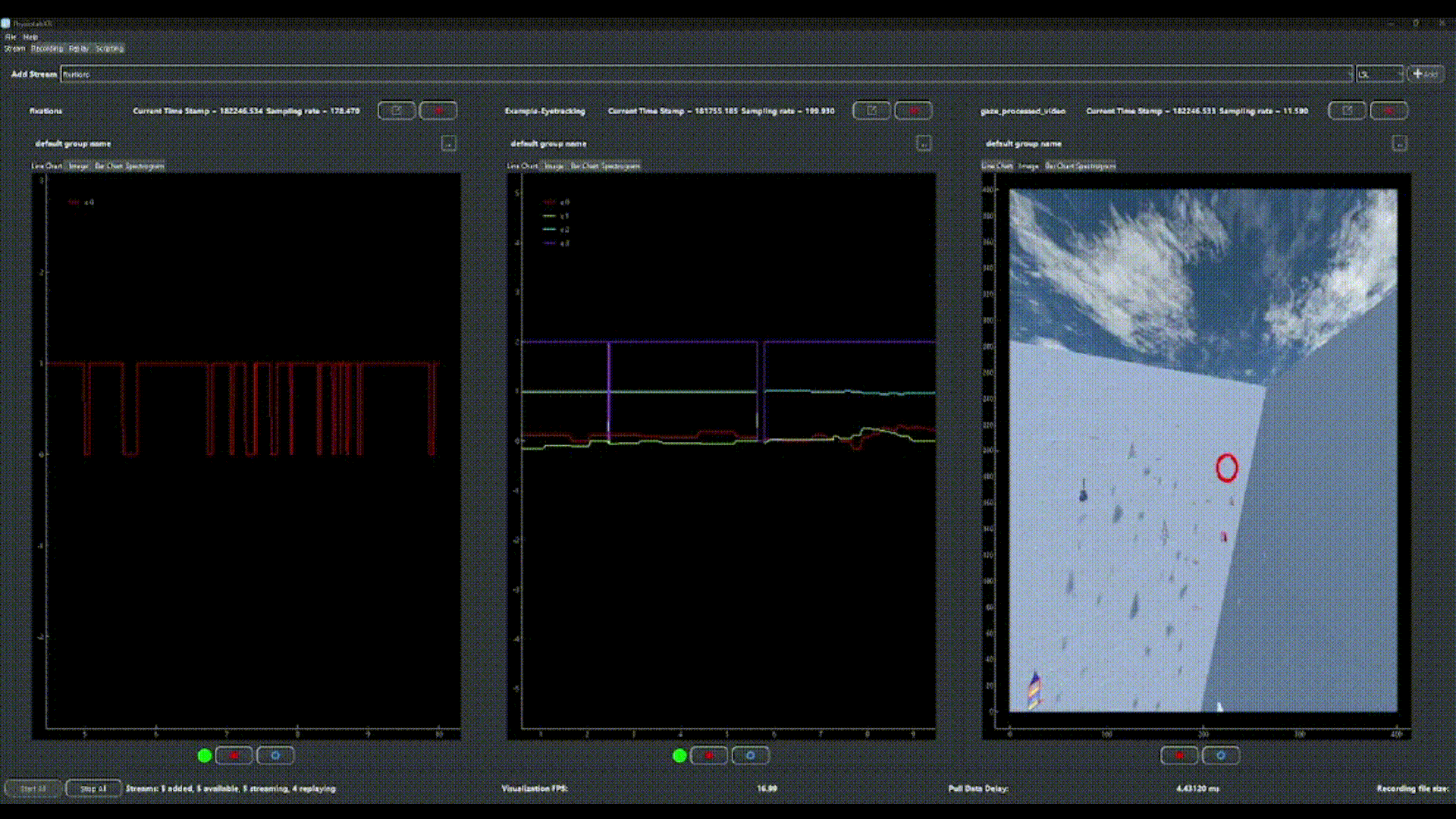

EEG + Eye Tracking + VR in Unity

Overview

PhysioLabXR is an open-source Python platform designed for real-time multi-modal brain-computer interfaces (BCI) and extended reality (XR) experiments. It integrates data from EEG, EMG, fNIRS, and eye trackers to process and visualize physiological data in real-time, making it a versatile tool for neuroscience and human-computer interaction (HCI) research. The platform has been adopted by research labs at Columbia University, Harvard Medical School, and other leading institutions.

Origin Story

PhysioLabXR began as a solution to challenges I faced during my sophomore year at Worcester Polytechnic Institute (WPI) while working on real-time data synchronization and visualization in sensor fusion experiments. Co-founded with my friend Ziheng ‘Leo’ Li, we aimed to create a tool that would streamline experimental pipelines for researchers. Over four years of continuous development and collaboration, PhysioLabXR has evolved into a widely used platform in top research labs.

My Contributions

• Leadership: Spearheaded the development of core features like data visualization, device interfaces, and signal processing.
• Sensor Fusion: Implemented Lab Streaming Layer (LSL) integration to handle diverse sensor data.
• User Education: Created demonstration paradigms like the P300 Speller, aiding researchers in adopting PhysioLabXR.
• Experiment Pipeline: Enabled real-time neural network inference with customizable DSP modules.

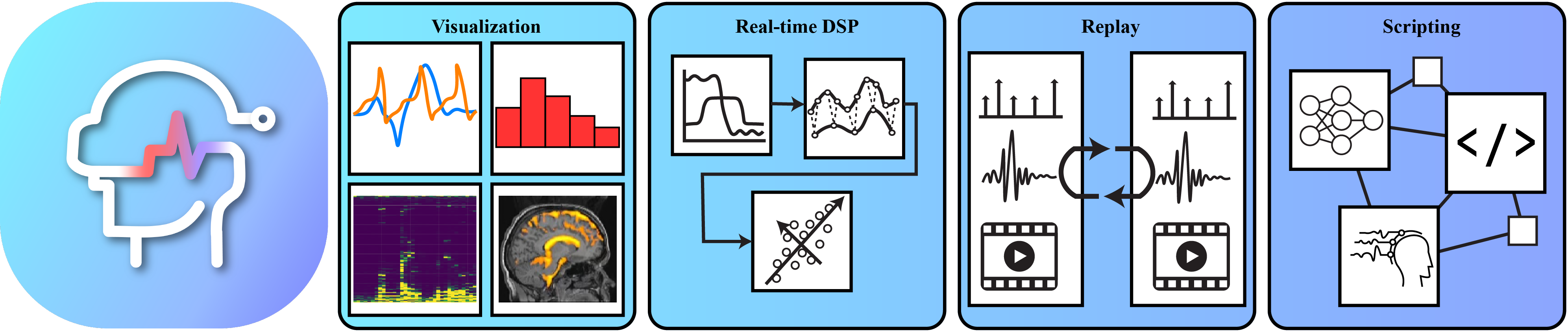

Key Features

• Real-Time Multi-Stream Data Processing: Visualize and process large datasets from multiple sensors concurrently.
• Sensor Integration: Supports EEG, EMG, fNIRS, eye trackers, and more via LSL and serial connections.
• User-Friendly Interface: Designed with an intuitive GUI for easy experiment setup and data analysis.
• Customizable Pipelines: Offers Python-based scripting for creating custom data processing pipelines.

Novelty

PhysioLabXR’s unique ability to handle real-time multi-modal data sets it apart as a pioneering tool in neurotechnology and extended reality. By providing an open-source, flexible platform, it empowers researchers to explore innovative BCIs and HCI applications efficiently.

Publications (paper that are under review or in preparation is not included):

PhysioLabXR has been used in several research papers:

• Wei, Haowen, Ziheng Li, Alexander D. Galvan, Zhuoran Su, Xiao Zhang, Kaveh Pahlavan, and Erin T. Solovey. “IndexPen: Two-Finger Text Input with Millimeter-Wave Radar.” Proceedings of the ACM on Interactive, Mobile, Wearable, and Ubiquitous Technologies 6, no. 2 (2022): 1-39.
• Koorathota, Sharath Chandra. “Multimodal deep learning systems for analysis of human behavior, preference, and state.” PhD diss., Columbia University, 2023.
• Lapborisuth, Pawan, Sharath Koorathota, and Paul Sajda. “Pupil-linked arousal modulates network-level EEG signatures of attention reorienting during immersive multitasking.” Journal of Neural Engineering 20, no. 4 (2023): 046043.

• For more information, please check out the PhysioLabXR GitHub repository and Documentation.

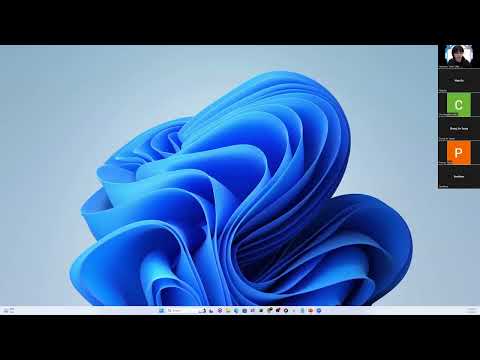

Supplementary Video:
